【WANHUA】Wanthane® WHT-1195B
share
Wanthane®
WHT-1195B
TYPE Polyester-based grade Extrusion grade
FEATURES Excellent mechanical properties, high abrasion resistance, wear resistance.
Applications Wire & Cable, tubes, conveyor belts, etc.
WHT-1195B
TYPE Polyester-based grade Extrusion grade
FEATURES Excellent mechanical properties, high abrasion resistance, wear resistance.
Applications Wire & Cable, tubes, conveyor belts, etc.
Detail
| Wanthane® WHT-1195B | |||||||||
| TYPE Polyester-based grade Extrusion grade | |||||||||
| FEATURES Excellent mechanical properties, high abrasion resistance, wear resistance. | |||||||||
| Applications Wire & Cable, tubes, conveyor belts, etc. | |||||||||
| Typical Properties* | Test Method | Units | Values | ||||||
| Specific Gravity | ASTM D 792 | g/cm3 | 1.21 | ||||||
| Shore Hardness | ASTM D 2240 | ShoreA | 95 | ||||||
| ASTM D 2240 | Shore D | 50 | |||||||
| Tensile Strength at 100% Elongation | ASTM D 412 | MPa | 12 | ||||||
| Tensile Strength at 300% Elongation | ASTM D 412 | MPa | 26 | ||||||
| Tensile Strength | ASTM D 412 | MPa | 48 | ||||||
| Ultimate Elongation | ASTM D 412 | % | 415 | ||||||
| Tear Strength | ASTM D 624 | N/mm | 130 | ||||||
| DIN Abrasion | ISO 4649 | mm3 | 42 | ||||||
| Tg by DSC | ASTM D 3418 | oC | -33 | ||||||
| Vicat Softening Temperature | ASTM D 1525 | oC | 125 | ||||||
| *All these physical properties are based on injection molded samples , which are conditioned at 23 oC / 50% for 24h. | |||||||||
| Above values are typical values and should not be used as specifications. | |||||||||
| Edition 01.01.2015 | Page 1 of 3 | ||||||||
| Wanthane® WHT-1195B | |||||||||
| DRYING | speed should be low in case of degradation during | ||||||||
| processing. | |||||||||
| Wanthane® materials are supplied pre-dried in moisture | TYPICAL PROCESSING CONDITIONS | ||||||||
| guarded bags. Dry Wanthane® will rapidly absorb moisture | |||||||||
| when exposed to atmosphere. For trouble free products, | Wanthane® | WHT-1195B | can | be | both | extruded | and | ||
| Wanthane® WHT-1195B must be dried before processing. | injection -molded. Typical processing conditions are listed | ||||||||
| It is recommended to dry the material at 100-110 oC for 2-3 | in the following tables and figures. You can contact our | ||||||||
| h in a circulating air or dehumidified air dryer. The moisture | TECHNICAL SERVICE for further inquiries about products | ||||||||
| content must be lower than 0.03% before and during | or troubleshooting | ||||||||
| processing. | |||||||||
| PACKAGING | |||||||||

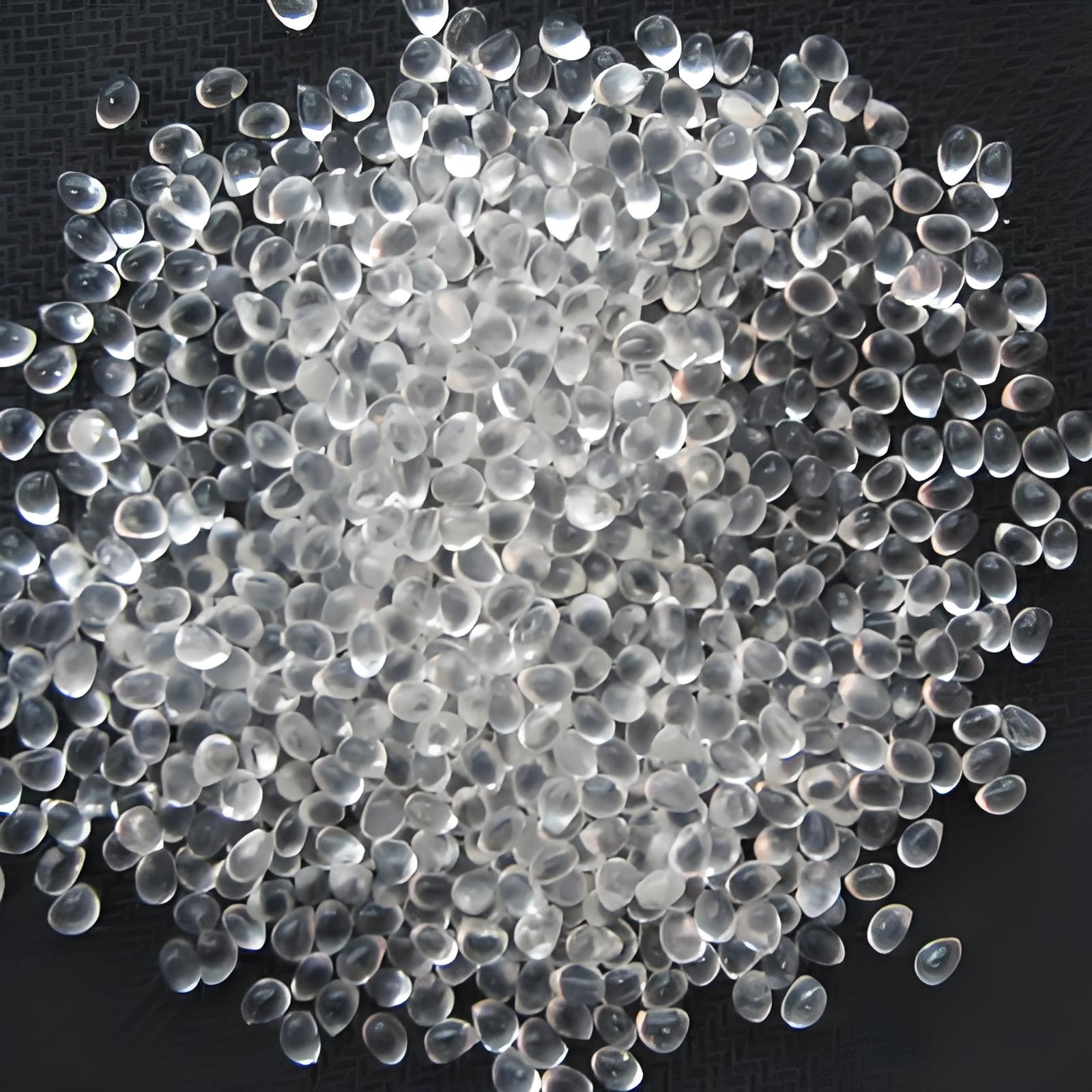

| Wanthane® | WHT-1195B is packaged in the form of | ||||||||
| uncolored transparent pellets in PE-lined bags of 25 Kg net | |||||||||
| weight (1000 Kg/pallet). | |||||||||
| STORAGE | Type: screw: 45mm, L/D:30, compression ratio 3:1 | ||||||||
| Wanthane® should be inspected to assure containers are | Zone1 | Zone2 | Zone3 | Zone4 Adaptor | Die1 | Die2 | |||
| not broken during transportation. Containers should be | ℃ | 190 | 195 | 200 | 205 | 210 | 205 | 200 | |
| stored in a cool and dry environment, and should be | |||||||||
| brought to room temperature before opening in order to | |||||||||
| prevent condensation. Once being used, containers with | |||||||||
| residual materials should be sealed. It is necessary to | |||||||||
| cover the feed hopper of the processing machine. | |||||||||
| PROCESSING RECOMMENDATIONS | |||||||||
| Based on our experience, the features of recommended | |||||||||
| screw are the following: | |||||||||
| 1. | L/D ratio between 25 and 30. | ||||||||
| 2. | The appropriate compression ratio is from 1:2 to 1:3. | ||||||||
| 3. | The screw extruder should have three sections which | ||||||||
| have continued constant pitch. The distance between | |||||||||
| screw and barrel should be 0.1 to 0.2 mm. Depending | |||||||||
| on the size and type of the screw and die, the breaker | |||||||||
| plates used should have holes of 1.5 to 5 mm. | |||||||||
| 4. | TPU is shear sensitive, for this reason, the extruder’s | ||||||||
| Edition 01.01.2015 | Page 2 of 3 | ||||||||
| HEALTH AND SAFETY | |||||||||
| Wanthane® | materials | have | no | hazardous | reactions | ||||
| observed. Waste can be discarded to public garbage cans. | |||||||||
| When | contacting | or | processing | this | product, | it | is | ||
| recommended that all personnel wear eye/face protection | |||||||||
| and | suitable | protective | clothing. | Any | further | safety | |||
| information | about | this | product | is | available | in | our | ||
| TECHNICAL SERVICE centre. | |||||||||
| Edition 01.01.2015 | Page 3 of 3 |
