CLARNATE®HL6157 Polycarbonate Resin
General Information
Features •Medium Viscosity •Easy Release •UV Stabilized
Uses •Head Lighting
Appearance •Clear/Transparent
Forms •Pellets
Processing Method •Injection Molding

Minimum Order Quantity 25kg

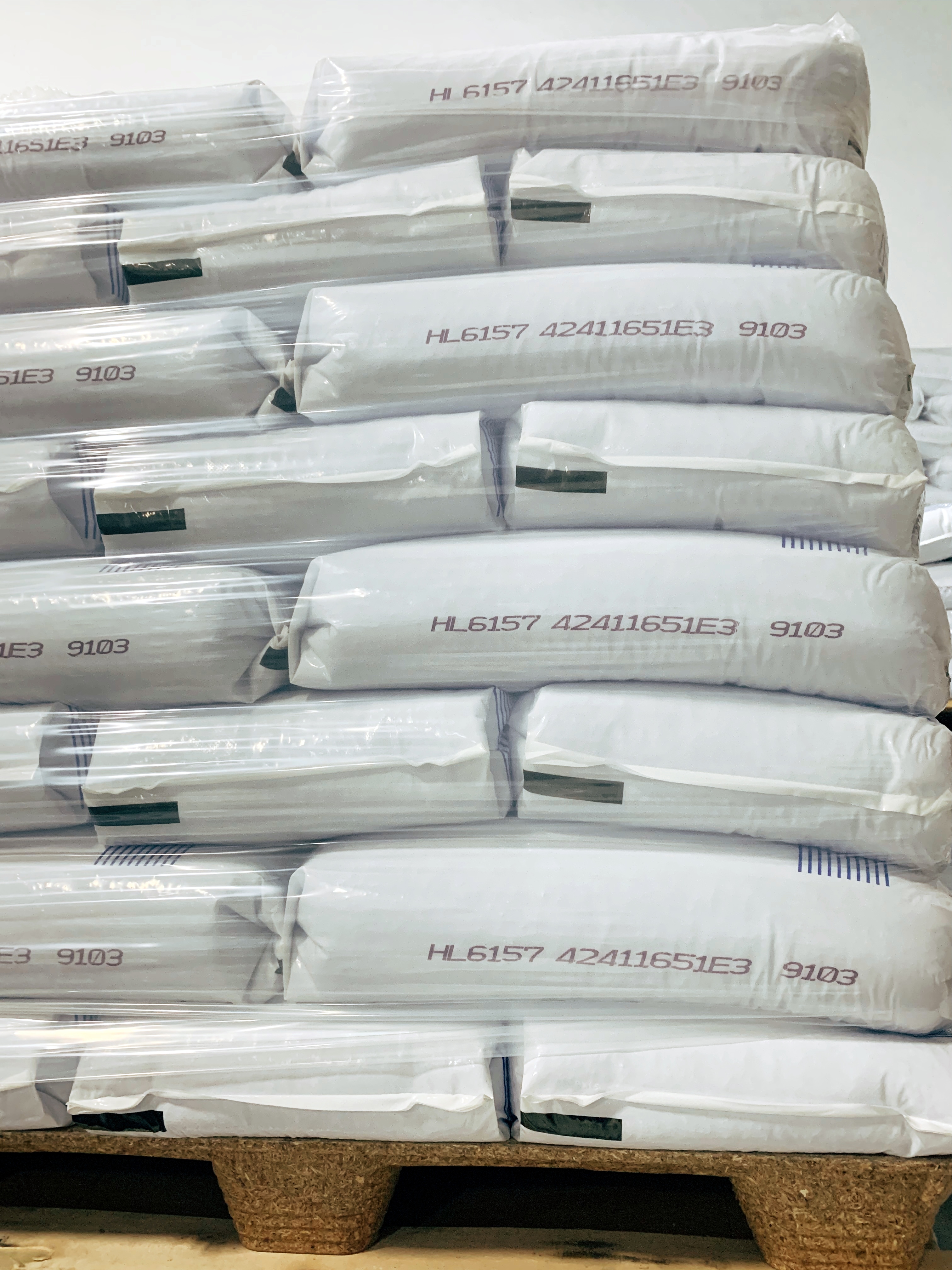

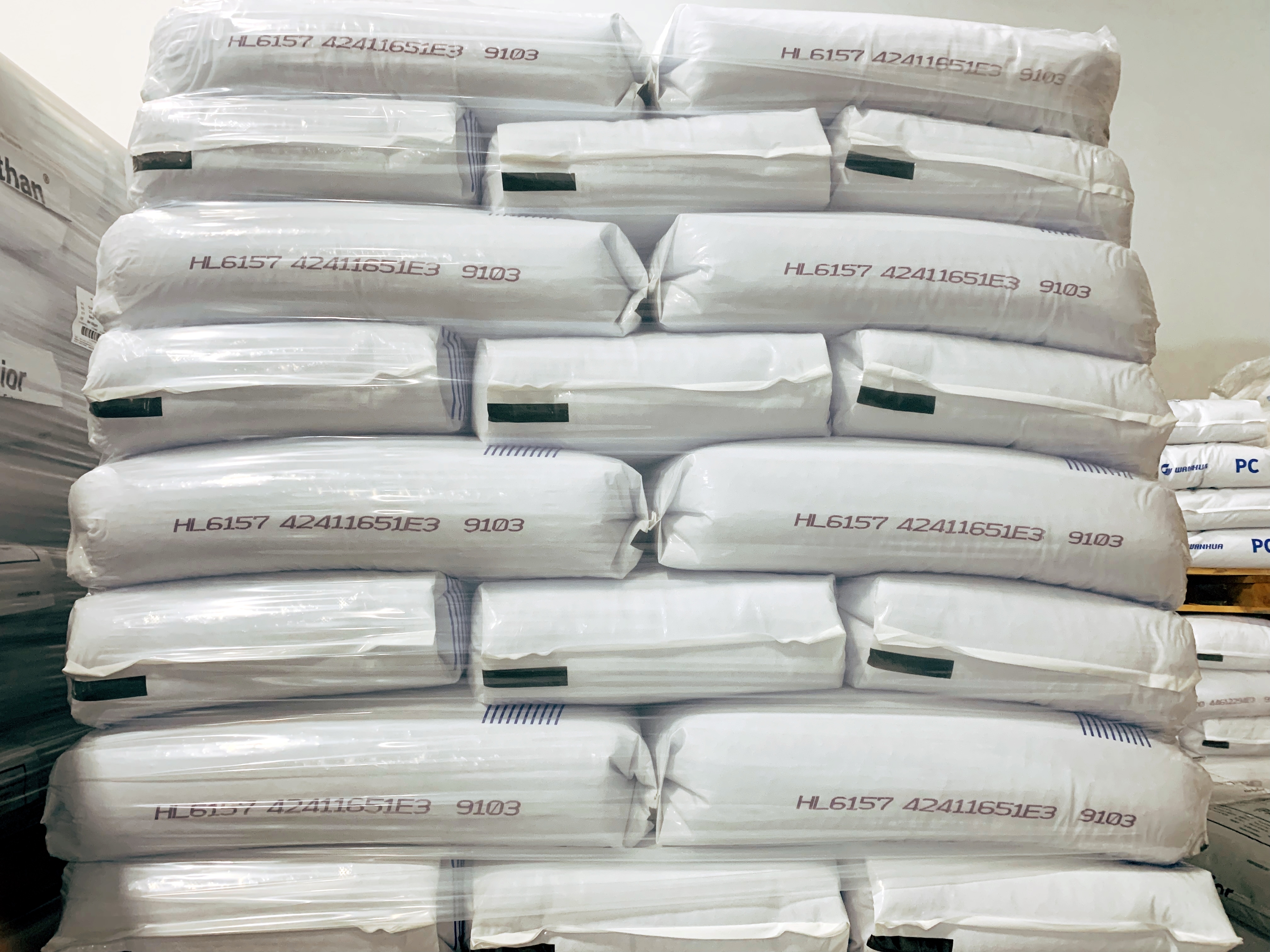

Packaging Details 25kg/bag

Delivery Time 3-5 working days to departure port

Supply Ability 1000MT/Month

Price $1.5-$3

Consult Now

Detail

CLARNATE®HL6157
		Technical Data Sheet
Revision Date： 2021-03-01				NO .WHPCBU_0001
Name :	HL6157			Version：4.0
CLARNATE®HL6157 Polycarbonate Resin
		General Information
Features		·Medium Viscosity	·Easy Release	·UV Stabilized
Uses		·Head Lighting
Appearance		·Clear/Transparent
Forms		·Pellets
Processing Method		·Injection Molding
		Typical Properties
		Test Method	Test Condition	Unit	Typical Value
Physical
Melt Flow Index		ASTM D1238	300℃/1.2Kg	g/10min	17
Mold Shrinkage		ASTM D955	-	%	0.5-0.7
WaterAbsorption		ASTM D570	23℃,24h	%	0.2
Density		ASTM D792	-	g/cm³	1.2
Mechanical
Stress at Break		ASTM D638	50mm/min	MPa	70
Tensile Modulus		ASTM D638	1mm/min	MPa	2300
Yield Stress		ASTM D638	50mm/min	MPa	65
Yield Strain		ASTM D638	50mm/min	%	6
Strain at Break		ASTM D638	50mm/min	%	120
Flexural Strength		ASTM D790	2mm/min	MPa	97
Flexural Modulus		ASTM D790	2mm/min	MPa	2300
Izod Notched Impact Strength		ASTM D256	23℃	J/m	720
Thermal
Heat Distortion Temp.		ASTM D648	1.82MPa;3.2mm	℃	127
Vicat Softening Temp.		ASTM D1525	120℃/h;50N	℃	147
Date of issue: Mar. 01, 2021				CLARNATE®
Version： 4.0
			1 / 3

CLARNATE®HL6157
	Typical Properties
	Test Method	Test Condition	Unit	Typical Value
Optical
Haze	ASTM D1003	3mm	%	<0.8
Light Transmittance	ASTM D1003	3mm	%	89
Refractive Index	ASTM D542	-	-	1.586
Flammability
Flame Rating	UL 94	3mm	-	HB
	UL 94	1.5mm	-	V2
Electrical
Relative Permittivity	IEC 60250	100Hz	-	3.1
	IEC 60250	1MHz	-	3
Dissipation Factor	IEC 60250	100Hz	10-4	5
	IEC 60250	1MHz	10-4	90
Volume Resistivity	IEC 60093	-	Ω·m	1014
Surface Resistivity	IEC 60093	-	Ω	1016
Electric Strength	IEC 60243-1	1mm	KV/mm	34
Comparative Tracking Index	IEC 60112	SolutionA	V	250
Processing Condition
Drying Temperature			℃	120
Drying Time			h	5
Injection Temperature			℃	280-300
Mold temperature			℃	80
Injection Speed			mm/s	50
For more information about safety and environment, please refer to our MSDS or contact our
customer service center.
