General Information
Features •Branching •High Viscosity •Food Contact

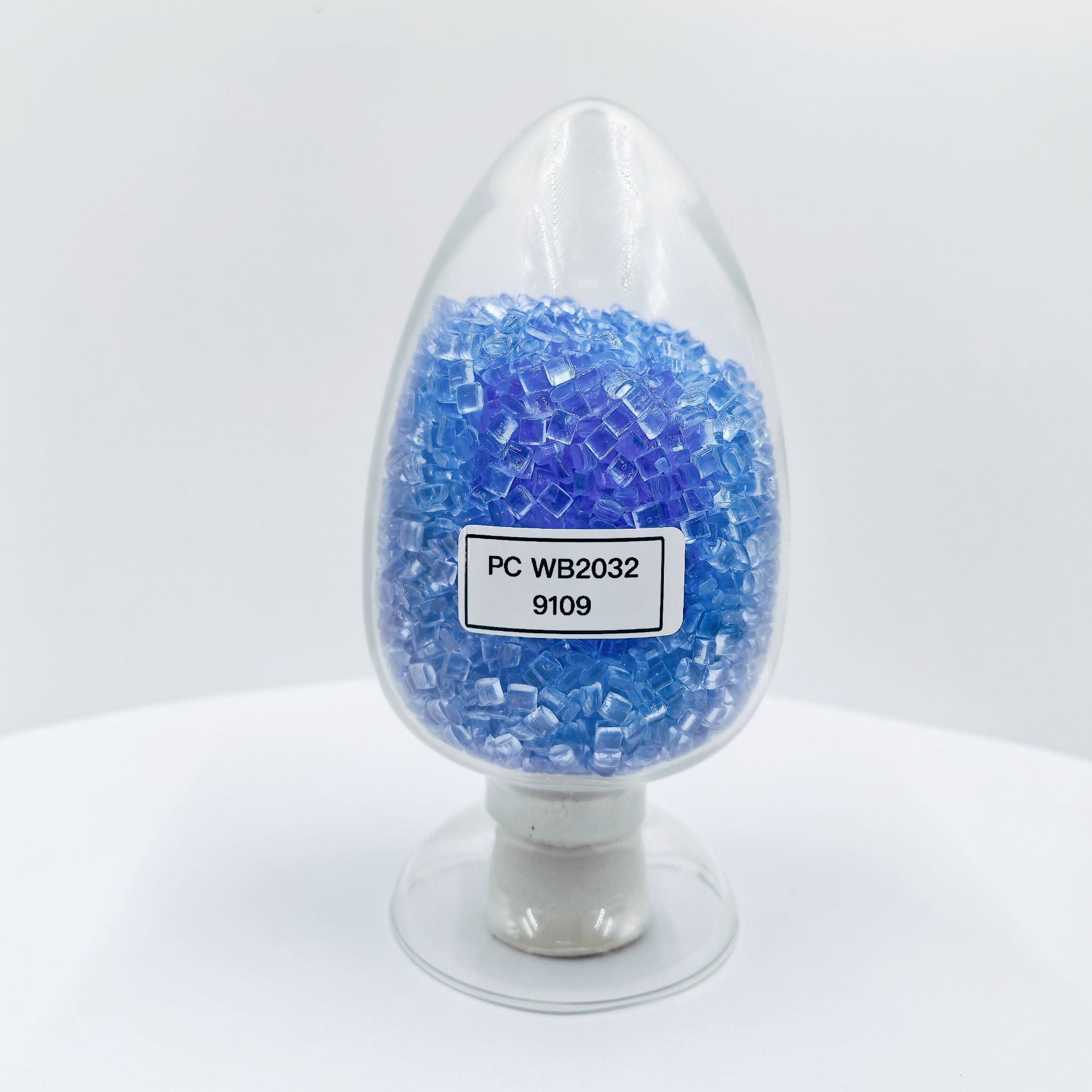

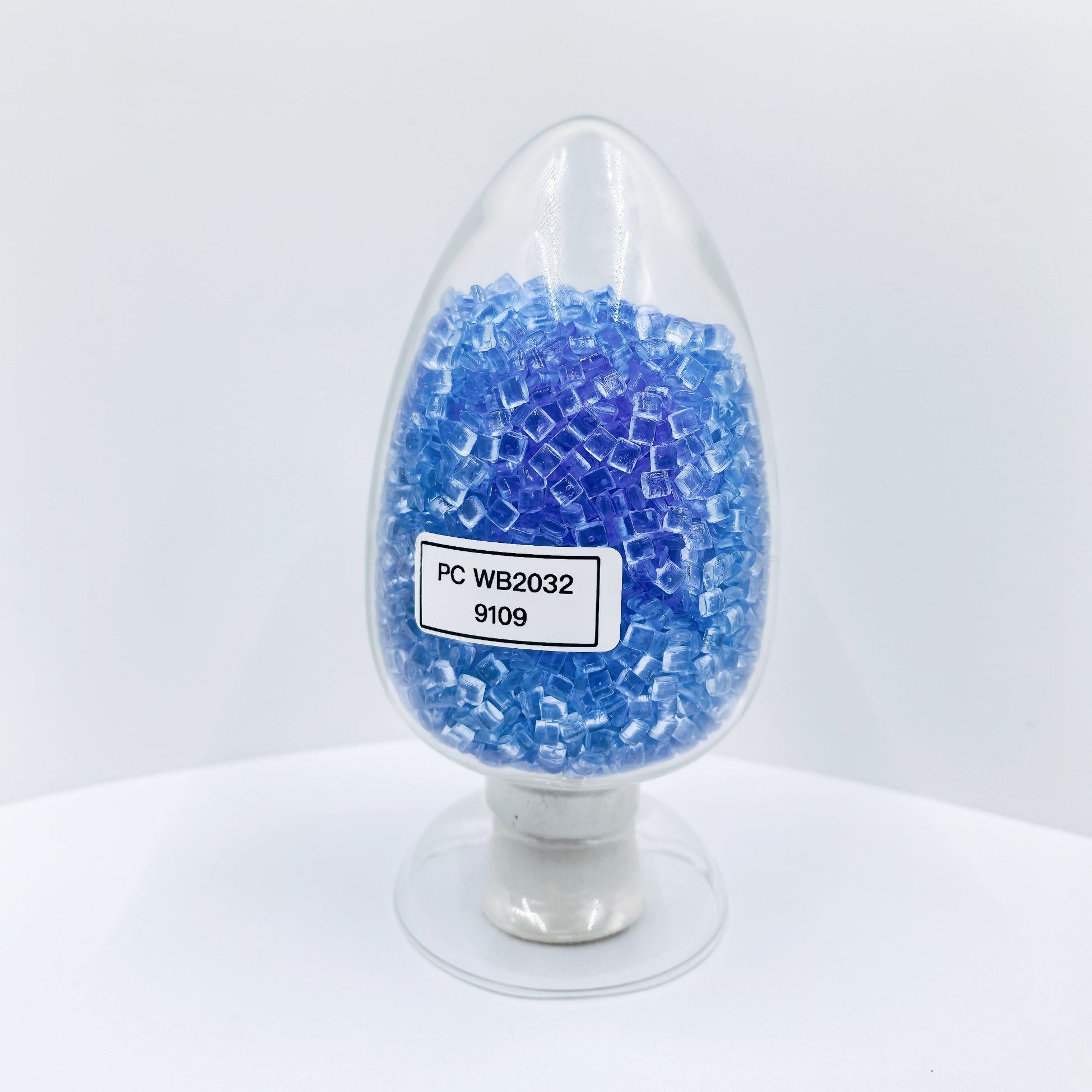

Appearance •Blue/Transparent

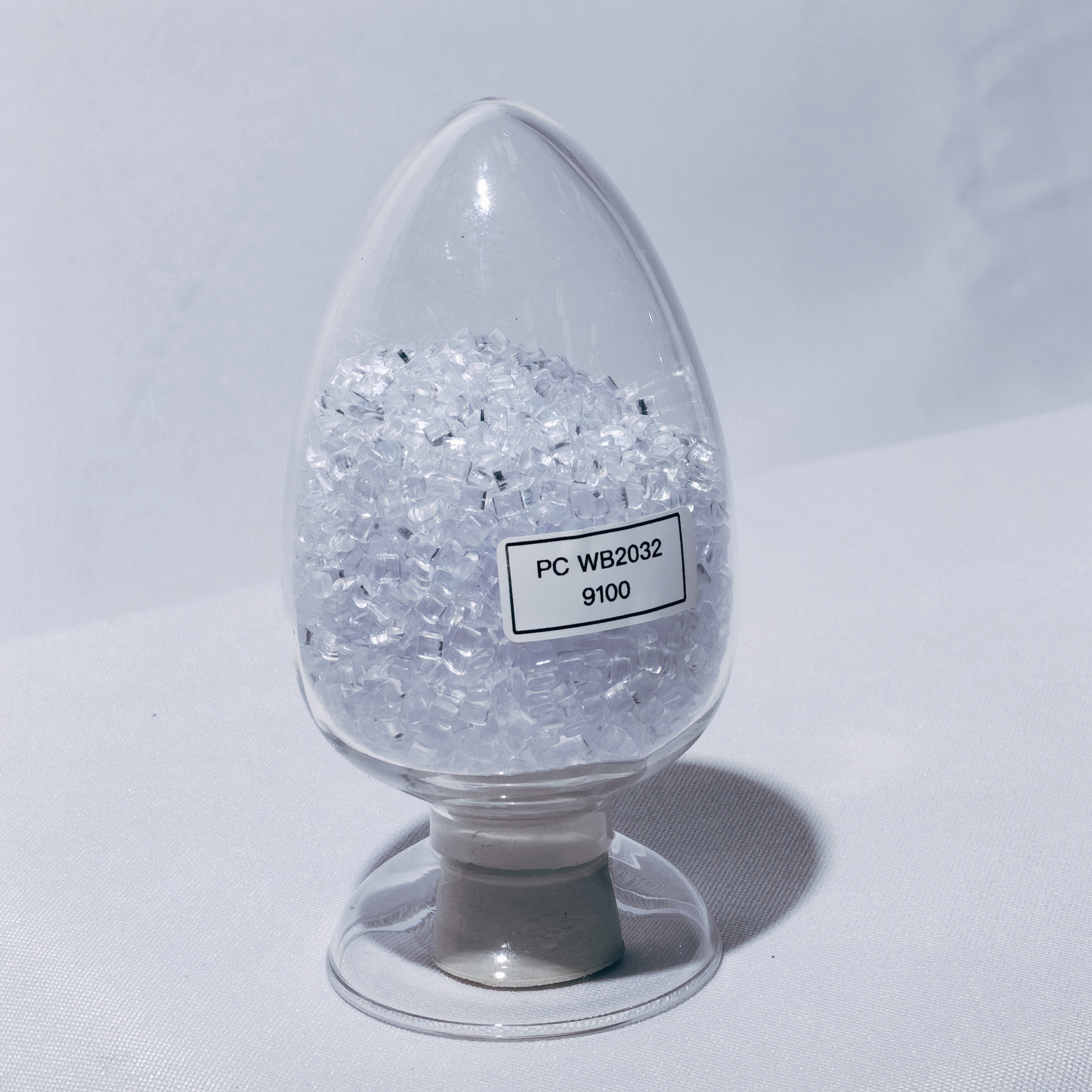

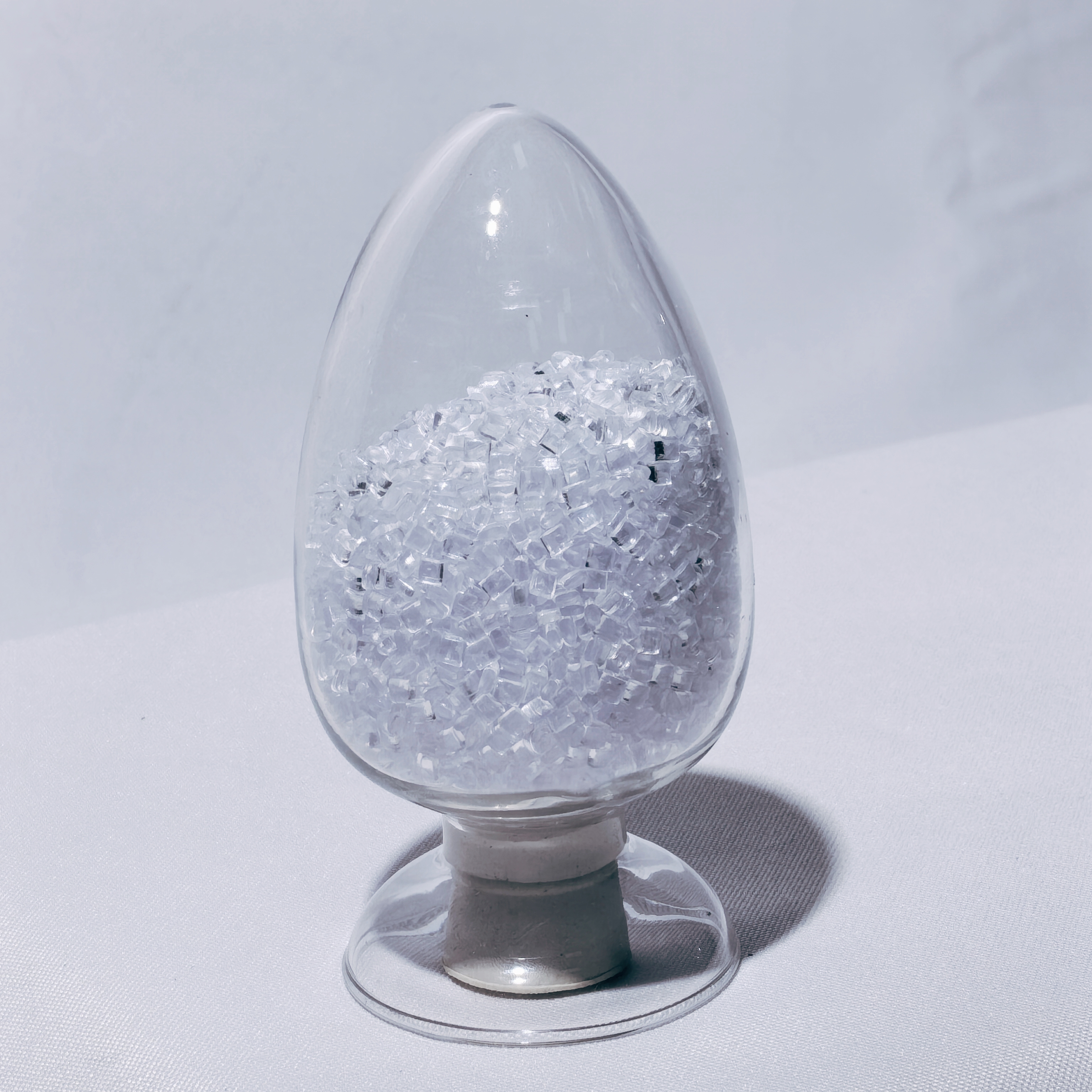

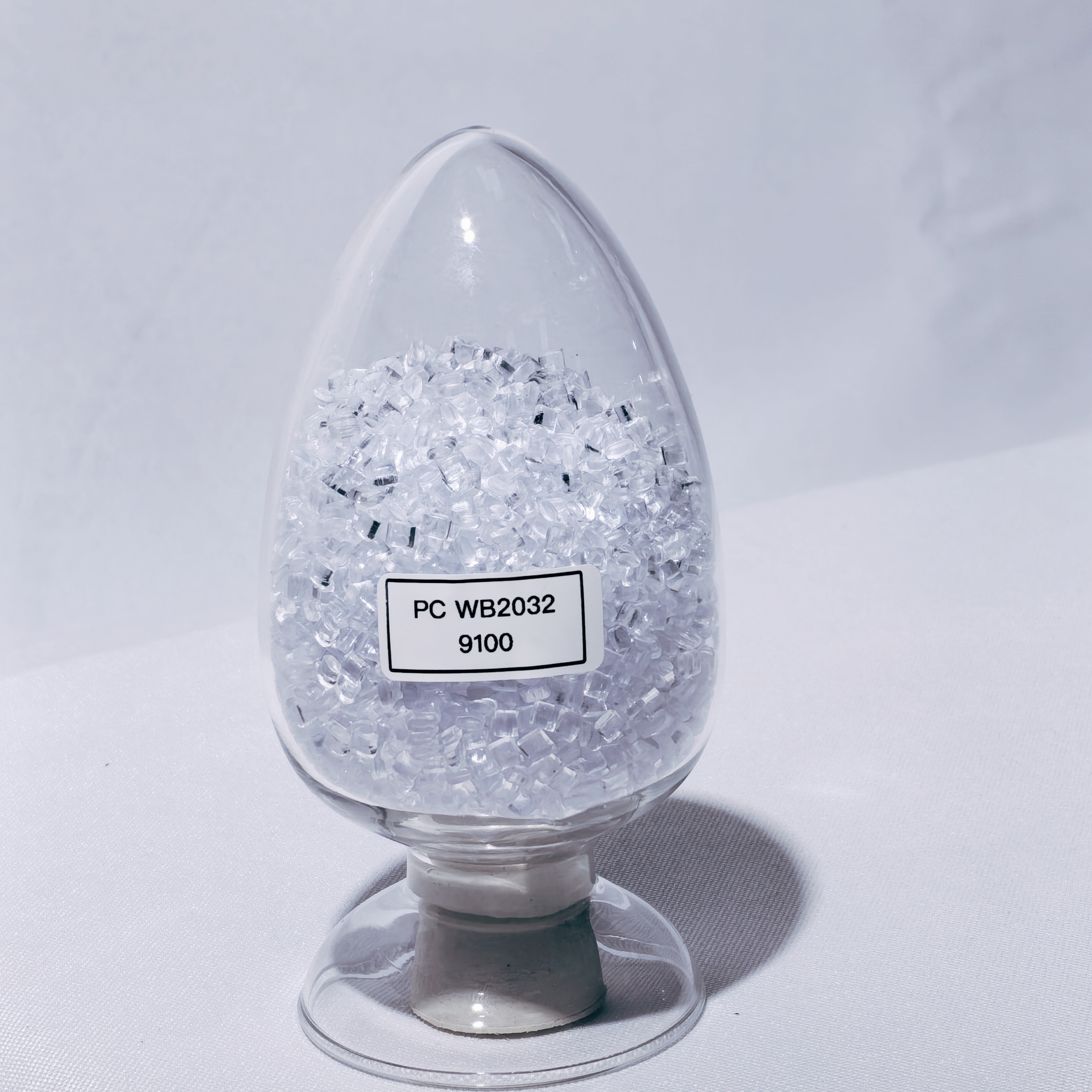

Forms •Pellets
Processing Method •Injection Molding •Blow Molding

Minimum Order Quantity 25kg

Packaging Details 25kg/bag

Delivery Time 3-5 working days to departure port

Supply Ability 1000MT/Month

Price $1.5-$3

Consult Now

Detail

CLARNATE®WB2032
		Technical Data Sheet
Revision Date： 2021-03-01				NO .WHPCBU_0001
Name :	WB2032			Version：2.0
CLARNATE®WB2032 Polycarbonate Resin
		General Information
Features		·Branching	·High Viscosity	·Food Contact
Appearance		·Blue/Transparent
Forms		·Pellets
Processing Method		·Injection Molding	·Blow Molding
		Typical Properties
		Test Method	Test Condition	Unit	Typical Value
Physical
Melt Flow Index		ASTM D1238	300℃/1.2Kg	g/10min	3
Mold Shrinkage		ASTM D955	-	%	0.5-0.7
WaterAbsorption		ASTM D570	23℃,24h	%	0.2
Density		ASTM D792	-	g/cm³	1.2
Mechanical
Stress at Break		ASTM D638	50mm/min	MPa	70
Tensile Modulus		ASTM D638	1mm/min	MPa	2200
Yield Stress		ASTM D638	50mm/min	MPa	65
Strain at Break		ASTM D638	50mm/min	%	130
Flexural Strength		ASTM D790	2mm/min	MPa	95
Flexural Modulus		ASTM D790	2mm/min	MPa	2300
Izod Notched Impact Strength		ASTM D256	23℃	J/m	900
Thermal
Heat Distortion Temp.		ASTM D648	1.82MPa;3.2mm	℃	129
Vicat Softening Temp.		ASTM D1525	120℃/h;50N	℃	149
Date of issue: Mar. 01, 2021				CLARNATE®
Version： 2.0
			1 / 3

CLARNATE®WB2032
	Typical Properties
	Test Method	Test Condition	Unit	Typical Value
Optical
Haze	ASTM D1003	3mm	%	0.8
Light Transmittance	ASTM D1003	3mm	%	60
Processing Condition
Drying Temperature			℃	120
Drying Time			h	5
Injection Temperature			℃	280-300
Mold temperature			℃	80
For more information about safety and environment, please refer to our MSDS or contact our
customer service center.
Date of issue: Mar. 01, 2021				CLARNATE®
Version： 2.0
		2 / 3
